Engine compartment - overview

The overview shows some service-related components.

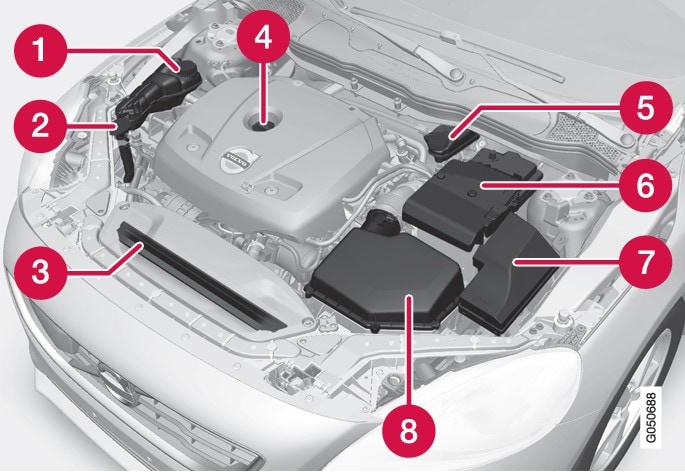

Engine compartment

P4-1420 Motorrumsbild VEP4
The appearance of the engine compartment may differ depending on model and engine variant.
  1. Ikon röd cirkel 1Coolant expansion tank
  2. Ikon röd cirkel 2Washer fluid filler pipe
  3. Ikon röd cirkel 3Radiator
  4. Ikon röd cirkel 4Engine oil filler pipe
  5. Ikon röd cirkel 5Reservoir for brake and clutch fluid (located on the driver's side)
  6. Ikon röd cirkel 6Starter battery
  7. Ikon röd cirkel 7Relay and fuse box
  8. Ikon röd cirkel 8Air filter

 Warning

The ignition system has very high voltage and output. The voltage in the ignition system is highly dangerous. The car's electrical system must always be in key position 0 when work is being performed in the engine compartment; see Key positions - functions at different levels.

Do not touch the spark plugs or ignition coil when the car's electrical system is in key position II or when the engine is hot.
