Control unit with only indicators
 | LED lamp 1 shows different colours depending on charging status. |
 | LED lamp 2 shows different colours depending on charging status. |

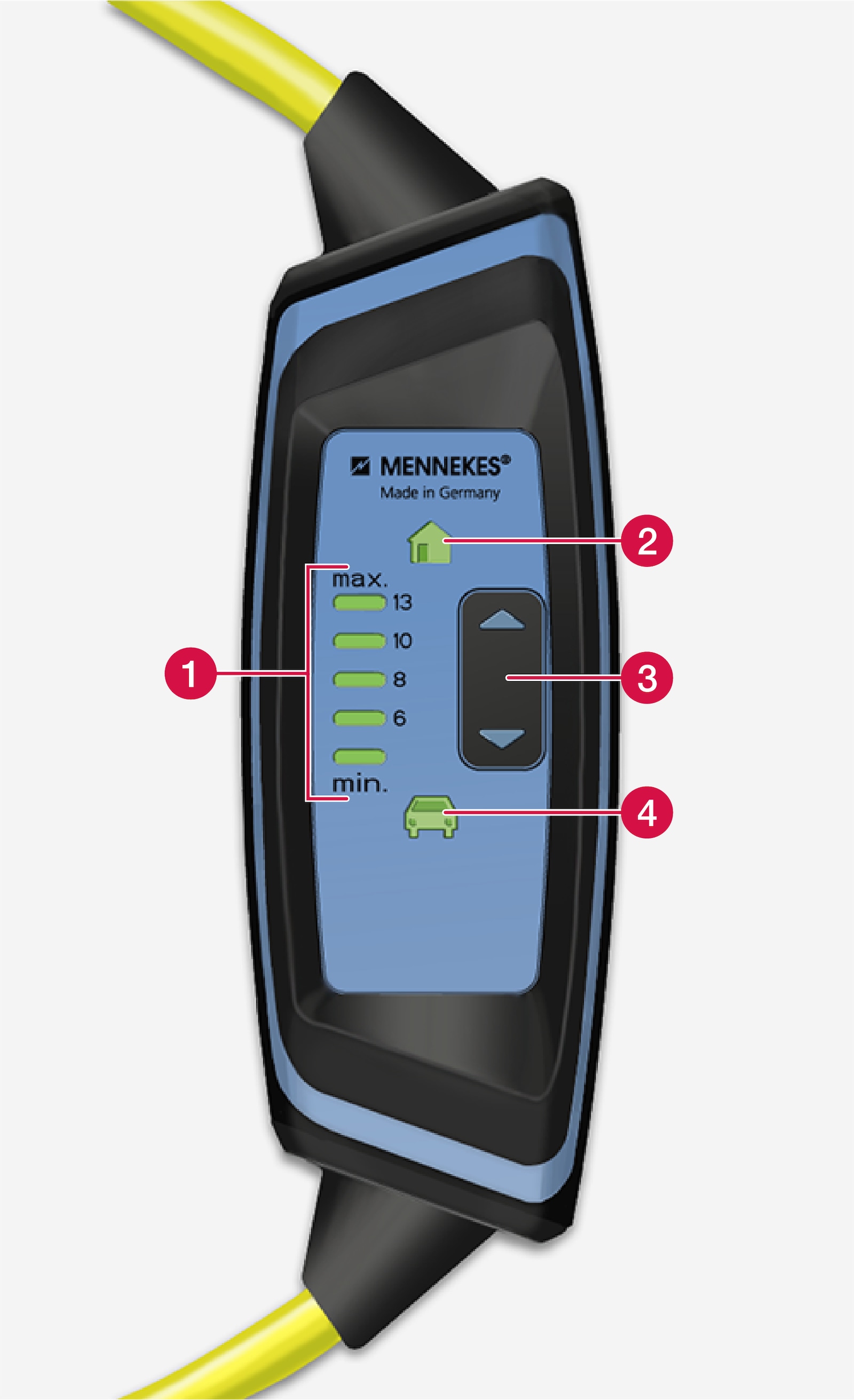

Control unit with both indicators and controls
| Indicator shows selected charging current. |
| The symbol illuminates when the charging cable is plugged into a 230 V socket (alternating current). |
 | Pushbuttons to increase and decrease the charging current. |
 | The symbol illuminates when the charging cable is plugged into the car's charging input socket. |
Note
The charging cable will remember the last setting of the charging current. It is therefore important to adjust the setting if another 230 V socket (alternating current) is used at the next charging.
On the charging cable's control unit, set the required charging current 6–16 A. On delivery, the lowest possible charging current is preset.
