Changing wheels - removing wheels

Spare wheel*

The spare wheel (Temporary spare) is only intended for use temporarily and must be replaced by an ordinary wheel as soon as possible. The car's handling may be altered by the use of the spare wheel. The spare wheel is smaller than the normal wheel. The car's ground clearance is affected accordingly. Pay attention to high kerbs and do not machine wash the car. If the spare wheel is fitted on the front axle, you cannot use snow chains at the same time. On all-wheel drive cars the drive on the rear axle can be disconnected. The spare wheel must not be repaired.

The correct tyre pressure for the spare wheel is stated in the tyre pressure table.

The spare wheel is located in the spare wheel well with the outside down. The same bolt runs through to secure the spare wheel and the foam block. The foam block contains all the tools needed to change the wheels.

Taking out the spare wheel

Removing

Set up warning triangle if a wheel is replaced in trafficked location. The car and jack* must be on a firm horizontal surface.

Apply the parking brake and engage reverse gear, or position P if the car has an automatic gearbox.

 Warning

Check that the jack is not damaged, that the threads are thoroughly lubricated and that it is free from dirt.

 Note

Volvo recommends only using the jack* that belongs to the car model in question, which is indicated on the jack's label.

The label also indicates the jack's maximum lift capacity at a specified minimum lifting height.

Take out the jack*, wheel wrench* and removal tool for wheel covers* located under the cargo floor in the cargo area. If another jack is selected, see Raising the car.

Place chocks in front of and behind the wheels which will remain on the ground to prevent them from rolling. Use heavy wooden blocks or large stones for example.

Screw together the towing eye with the wheel wrench* until the stop position in accordance with the following figure.

 Important

The towing eye must be screwed into all threads in the wheel bolt wrench.

Loosen the wheel bolts ½-1 turn anticlockwise with the wheel wrench.

 Warning

Never position anything between the ground and the jack, nor between the jack and the car's jacking point.

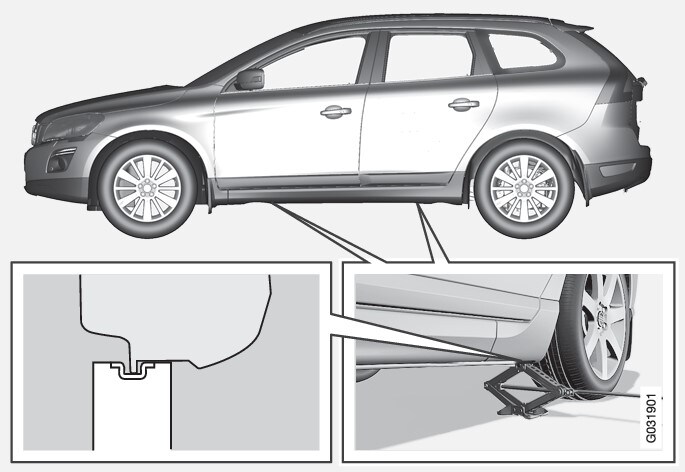

There are two jacking points on each side of the car. There is a recess in the plastic cover at each point. Crank the foot of the jack down so it is pressed squarely on the ground.

 Important

The ground must be firm, smooth and level.

Check that the jack sits in the anchorage as illustrated and that the foot is positioned vertically under the anchorage.

 Important

The jacking point is the rearmost of the two rear recesses.

Lift the car so that the wheel is free. Remove the wheel bolts and lift off the wheel.
