Brake and clutch fluid - level

Brake and clutch fluid level should be between the reservoir MIN and MAX marks.

Checking the level

Brake and clutch fluid have a common reservoir. The level must be between the MIN and MAX marks that are visible inside the reservoir. Check the level regularly.

Change the brake fluid every other year or at every other regular service.

For capacities and recommended brake fluid grade, see Brake fluid - grade and volume. The fluid should be changed annually on cars driven in conditions requiring hard, frequent braking, such as driving in mountains or tropical climates with high humidity.

 Warning

If the brake fluid is under the MIN level in the brake fluid reservoir, do not drive further before topping up the brake fluid. Volvo recommends that the reason for the loss of brake fluid is investigated by an authorised Volvo workshop.

Filling

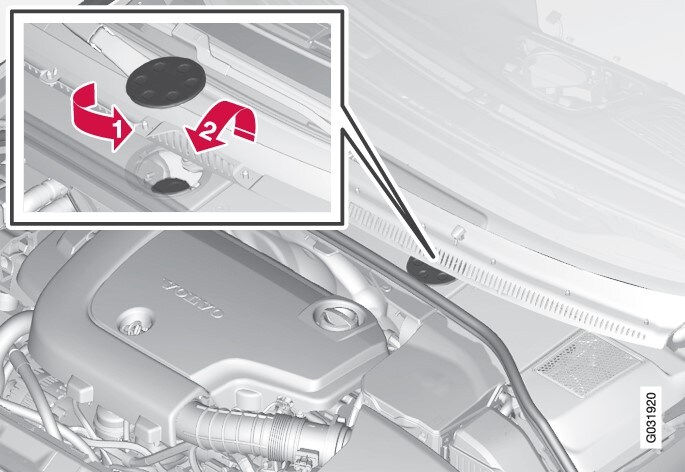

P3-413-813-Brake fluid refill
The fluid reservoir is located on the driver's side.

The fluid reservoir is protected under the cover over the cold zone in the engine compartment. The round cover must be removed first before the reservoir cap can be reached.

Ikon röd pil 1

Turn and open the cover located on the covering.

Ikon röd pil 2

Unscrew the reservoir cap and fill the fluid. The level must be between the MIN and MAX marks, which are located on the inside of the reservoir.

 Important

Do not forget to refit the cap.
