Type designations

Updated 08/06/2023

Type designation, vehicle identification number, etc., i.e. information unique to the car, can be read on labels in the car.

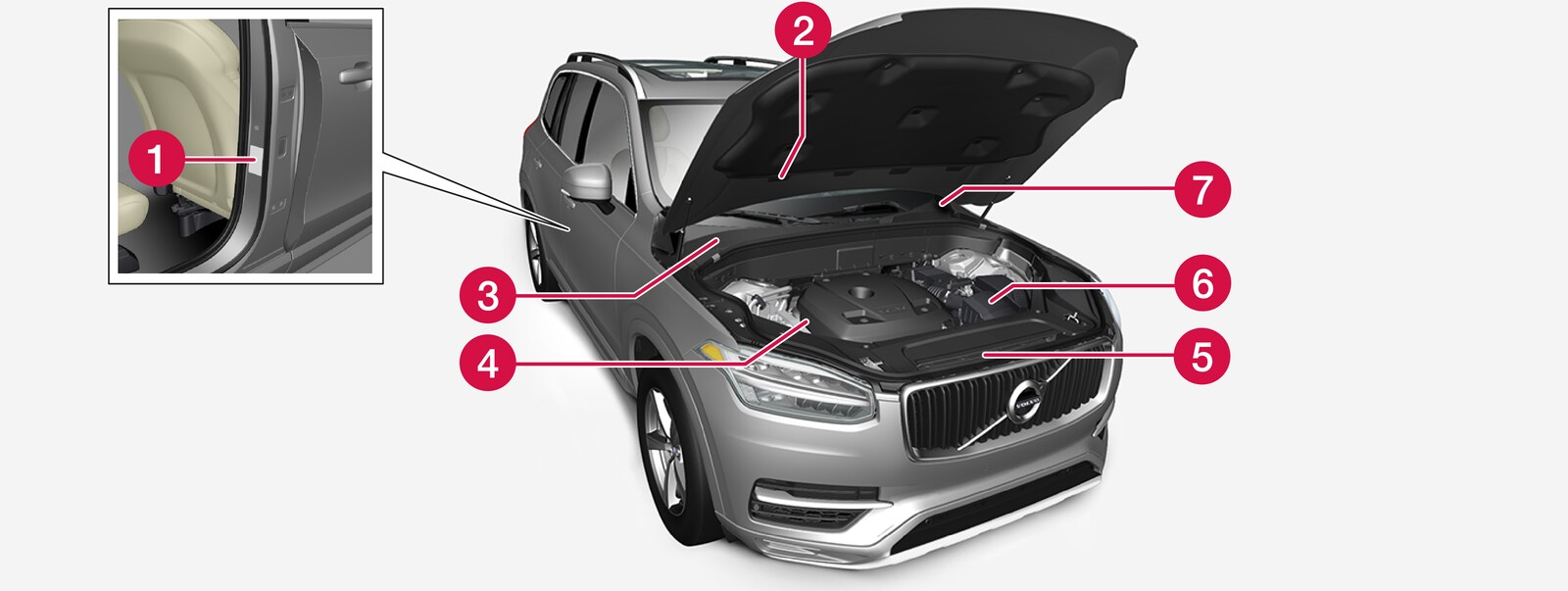

Label location

P5-1507-Type approval, labels, not China, Russia and Saudi Arabia — Knowing the car's type designation, vehicle identification and engine numbers can facilitate all contact with an authorised Volvo dealer regarding the car and when ordering spare parts and accessories.

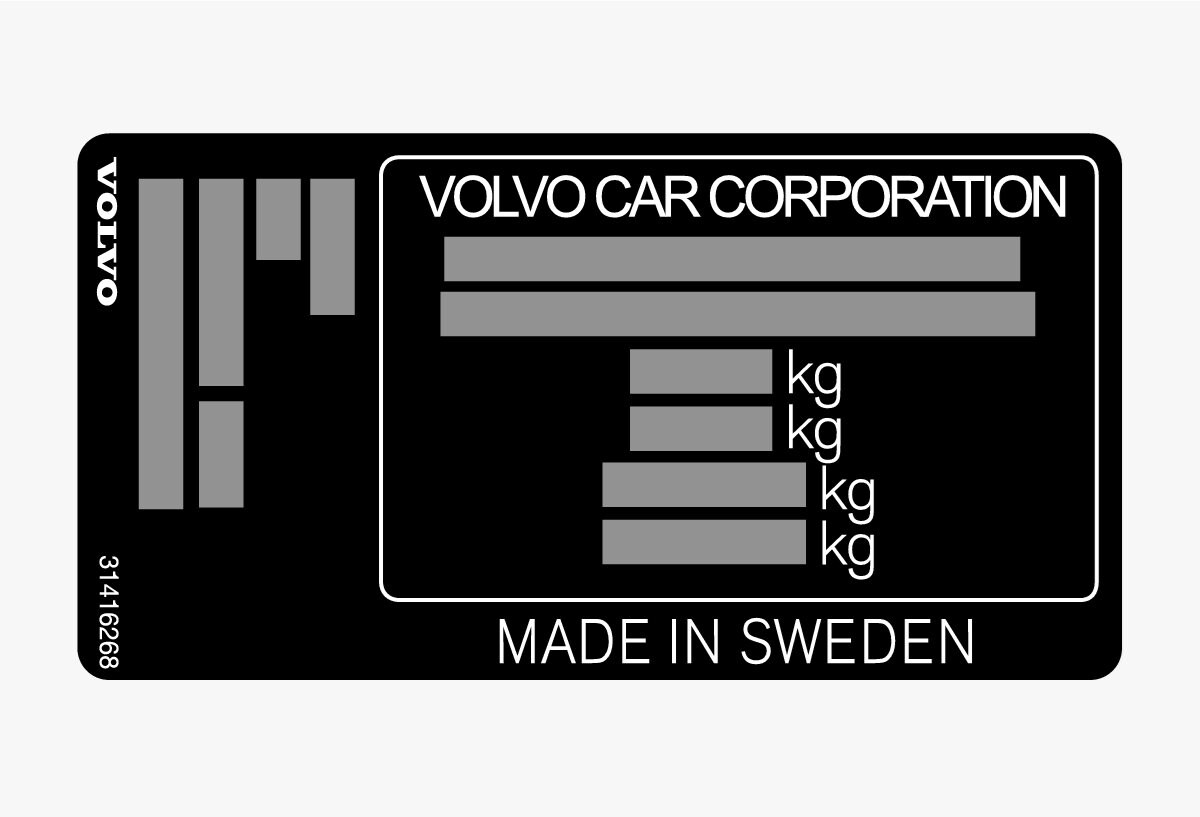

P5-1507-Product decal, not China and Saudi Arabia

P5-Icon red circle 1 Type designation, vehicle identification number, permissible maximum weights and code designation for exterior colour and date of manufacture. The decal is positioned on the door pillar, and will be visible when the right-hand rear door is opened.

P5-Icon red circle 2 Decal A/C system for cars with refrigerant R1234yf.

P5-Icon red circle 2 Decal A/C system for cars with refrigerant R134a.

P5-Icon red circle 3 Label for parking heater.

P5-Icon red circle 4 Engine code and engine serial number.

P5-Icon red circle 5 Label for engine oil.

P5-Icon red circle 6 Gearbox type designation and serial number.

P5-Icon red circle 7 Car's identification number (VIN Vehicle Identification Number).

Further information on the car is presented in the registration document.

Note

It is not intended that the decals illustrated in the owner's manual should be exact replicas of those in the car. They are included to show their approximate appearance and location in the car. The information that applies to your particular car can be found on the decal on the car.
