Interior lighting

Updated 08/06/2023

The passenger compartment lighting is activated/deactivated with the buttons in the controls above the front seats and the rear seat.

P3 V60H främre takbelysning kupé — Controls in roof console for the front reading lamps and passenger compartment lighting.

Ikon röd cirkel 1 — Controls in roof console for the front reading lamps and passenger compartment lighting.

All lighting in the passenger compartment can be switched on and off manually within 30 minutes from when:

the engine has been switched off and the car's electrical system is in key position 0
the car has been unlocked but the engine has not been started.

Front roof lighting

The front reading lamps are switched on or off by pressing the relevant button in the roof console.

Rear roof lighting

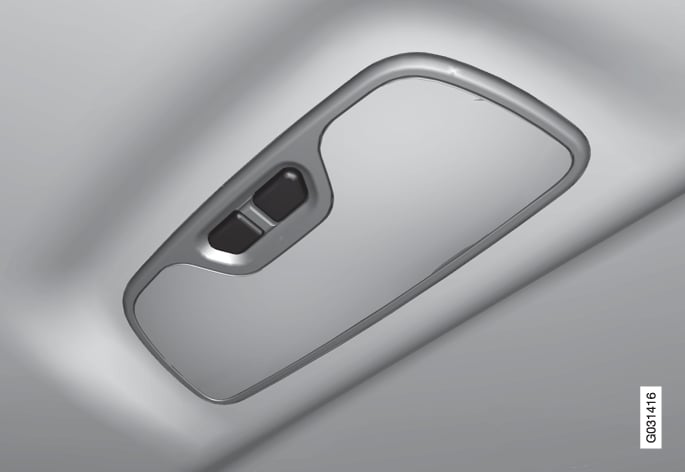

P3 V60H bakre takbelysning kupé — Rear roof lighting.

P3-0835 XC60 Interior lighting rear, with panorama roof — Rear roof lighting in cars with panorama roof.

The lamps are switched on or off by pressing each respective button.

Courtesy lighting

Courtesy lighting (and passenger compartment lighting) is switched on and off respectively when a side door is opened or closed.

Glovebox lighting

Glovebox lighting is switched on and off respectively when the lid is opened or closed.

Vanity mirror lighting

The lighting for the vanity mirror is switched on and off respectively when the cover is opened or closed.

Lighting in the cargo area

The lighting in the cargo area is switched on and off respectively when the tailgate is opened or closed.

Automatic lighting

The switch for passenger compartment lighting has three positions for the lighting in the passenger compartment:

Off – right-hand side pressed in, automatic lighting deactivated.
Neutral position – automatic lighting activated.
On – left-hand side pressed in, passenger compartment lighting switched on.

Neutral position

When the button is in neutral position the passenger compartment lighting is switched on and off automatically in accordance with the following.

The passenger compartment lighting is switched on and remains on for 30 seconds if:

the car is unlocked with the remote control key or key blade, see Remote control key - functions or Detachable key blade - unlocking doors
the engine has been switched off and the car's electrical system is in key position 0.

Passenger compartment lighting is switched off when:

the engine is started
the car is locked.

The passenger compartment lighting comes on and remains on for two minutes if one of the doors is open.

If any lighting is switched on manually and the car is locked then it will be switched off automatically after two minutes.

Ambience lights*

When the normal passenger compartment lighting is switched off and the engine is running, a number of LEDs illuminate, including one in the ceiling lighting, in order to provide a low-light and enhance the mood while driving. The light also makes it easier to see objects in storage compartments etc. during the darker hours of the day. This lighting goes out for a little while after the normal passenger compartment lighting when the car is locked. The brightness is controlled using the thumbwheel on the headlamp control.
