Dipped beam

Updated 08/06/2023

With the steering wheel stalk switch's rotating ring in P5-1707 Symbol AUTO

position, and with the car's electrical system in ignition position II or the engine running, dipped beam is activated automatically in poor light conditions.

Dipped beam

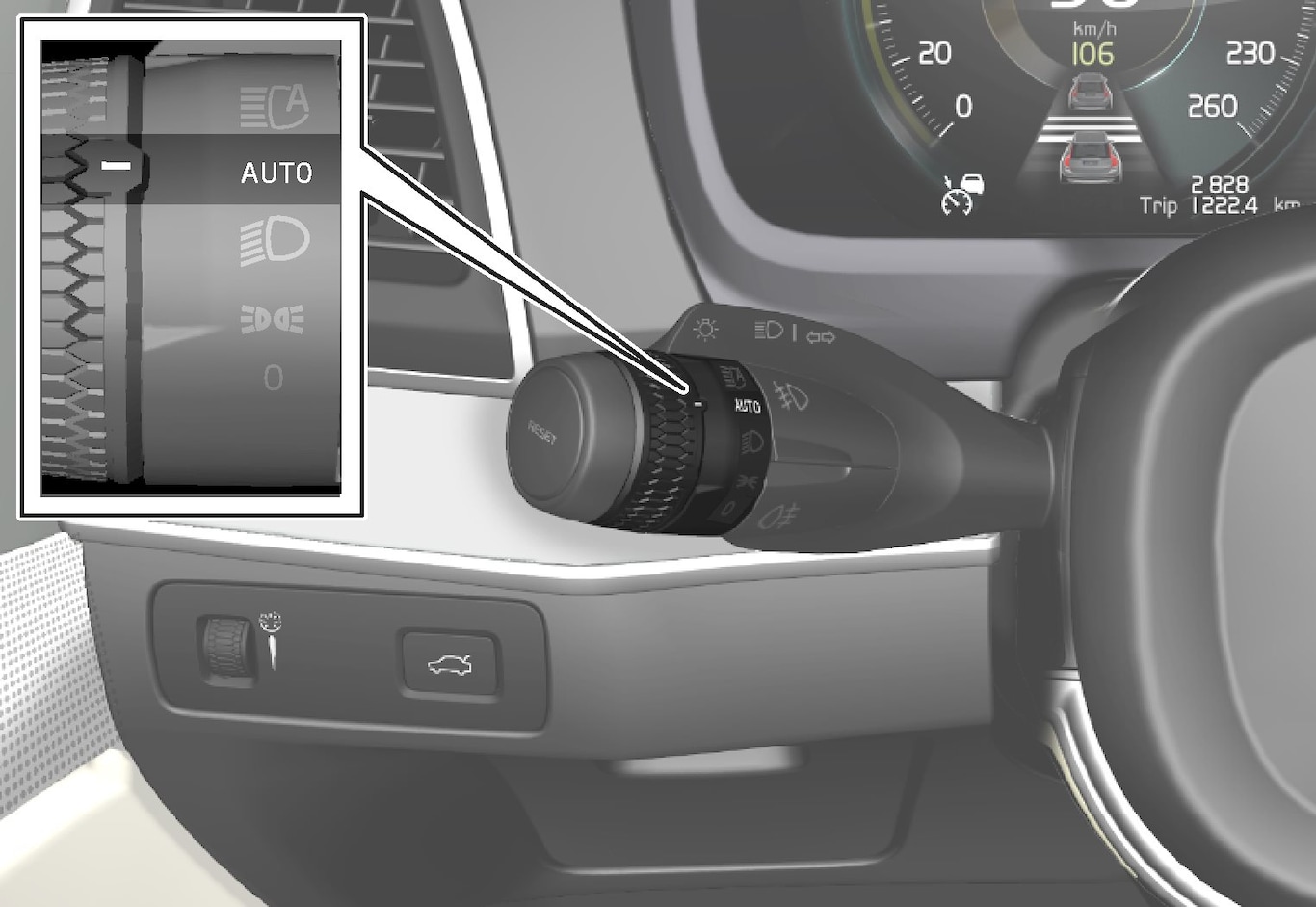

P5-1507 Stalk with turning ring, low beam — Steering wheel stalk switch with rotating ring.

With the steering wheel stalk switch's rotating ring in P5-1707 Symbol AUTO position, dipped beam is activated automatically at dusk or when daylight becomes too weak. Dipped beam is also activated automatically when the rear fog lamps are activated.

With the steering wheel stalk switch's rotating ring in P5-1507 Symbol low beam position, dipped beam is always switched on when the engine is running or when ignition position II is active.

Tunnel detection

The car detects when it is about to drive into a tunnel and switches from daytime running lights to dipped beams.

Note that the rotating ring in the left-hand stalk switch must be in P5-1707 Symbol AUTO mode for tunnel detection to work.
